3 Inch Lift Kit Ford F-150 4WD (2014-2020)
STARTING PRICE
$499.95
STARTING PRICE
$499.95
Select Matching Wheels and Tires
FREE Mount, Balance, and Shipping!
Features

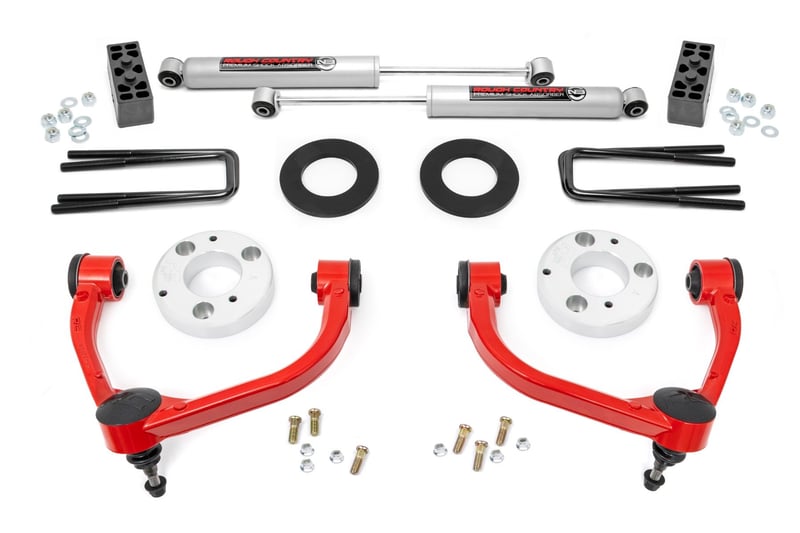

Rough Country's 3in Bolt-On Kit offers easy installation and aggressive good looks at an incredible value. Take your truck to new heights with this excellent option for 14 and up F-150 pickups. This kit features a set of high-quality, Forged Aluminum Upper Control Arms designed to make alignment adjustments easier and Clevite rubber bushings for enhanced durability.
- Easy Bolt-On installation
- No Cutting or Drilling required!
- Includes New forged aluminum upper control Arms
- Control arms keep ball joints at optimum angles for less wear and tear
- Control arms include durable rubber bushings for enhanced durability
- Increased ground clearance
- Levels the front and rear of the truck
- Can be returned to stock
- Retain your factory wheels by using our 0.25-inch wheel spacers [SKU: 1065].
- Lifetime Replacement Warranty*
- Includes pre-loaded coil
- Maintains smooth, factory-like ride
- Increased ground clearance
- Engineered for lifted applications
- Infinitely Variable Damping
- Leak-proof piston seal
- Massive 1 3/8in Bore
- Silver powder coat finish
- 3-year Manufacturer's Warranty
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty
- 8-Stage Adjustable Damping
- Monotube Design
- Nitrogen-charged
- Massive 2.5in Piston
- 22mm Chrome-Hardened Piston Rod
- 3-Stage Seal System
- Heat-Treated, Alloy Bearing
- Honed Steel Body
- 3-year Manufacturer's Warranty
Optional N3 Loaded Struts
Optional V2 Monotube Shocks
Optional Vertex
Fitment Notes
- Does NOT fit regular/standard cab models.
- Does NOT fit seven lug models.
- SKU: 51014 does NOT work on models with stock ride height over 22in. [measured from center of wheel to the bottom of the fender]
- Spacer kit '51014' does NOT fit on trucks with FX4, Snow Prep, and other off-road packages that modify front strut assemblies will likely measure over 22in and will not work with this kit.
- Models retaining factory wheels are advised to run no wider than a 11.5" wide tire.
- For additional clearance on models equipped with aggressive side wall tires a 0.25 wheel spacer is recommended.
Installation
GET IT INSTALLED
Don’t want to install it yourself? Search for installers in your area.
FITMENT
Vehicles
year: 2017 - 2020
make: Ford
model: F-150 Raptor
drive: 4WD
year: 2014 - 2020
make: Ford
model: F-150
drive: 4WD
year: 2014
make: Ford
model: F-150 SVT Raptor
drive: 4WD
Always read all product page details for more important fitment information
Wheels & Tires
size: 285/65R18
wheel: 18x8.5
Bolt Pattern: 6x135
Wheel Offset: +0
note: -
Stance: 1
size: 285/65R18
wheel: 18x8.5
Bolt Pattern: 6x135
Wheel Offset: +1
note: -
Stance: 1
size: 305/60R18
wheel: 18x8.5
Bolt Pattern: 6x135
Wheel Offset: +0
note: -
Stance: 1
size: 305/60R18
wheel: 18x8.5
Bolt Pattern: 6x135
Wheel Offset: +1
note: -
Stance: 1
size: 285/65R18
wheel: 18x9
Bolt Pattern: 6x135
Wheel Offset: +0
note: -
Stance: 1
size: 285/65R18
wheel: 18x9
Bolt Pattern: 6x135
Wheel Offset: +1
note: -
Stance: 1
size: 285/65R18
wheel: 18x9
Bolt Pattern: 6x135
Wheel Offset: -12
note: -
Stance: 1
size: 305/60R18
wheel: 18x9
Bolt Pattern: 6x135
Wheel Offset: +0
note: -
Stance: 1
size: 305/60R18
wheel: 18x9
Bolt Pattern: 6x135
Wheel Offset: +1
note: -
Stance: 1
size: 305/60R18
wheel: 18x9
Bolt Pattern: 6x135
Wheel Offset: -12
note: -
Stance: 1
size: 33x12.50R18
wheel: 18x9
Bolt Pattern: 6x135
Wheel Offset: +0
note: -
Stance: 1
size: 33x12.50R18
wheel: 18x9
Bolt Pattern: 6x135
Wheel Offset: +1
note: -
Stance: 1
size: 33x12.50R18
wheel: 18x9
Bolt Pattern: 6x135
Wheel Offset: -12
note: -
Stance: 1
size: 295/60R20
wheel: 20x10
Bolt Pattern: 6x135
Wheel Offset: -18
note: Minor Trimming
Stance: 2
size: 295/60R20
wheel: 20x10
Bolt Pattern: 6x135
Wheel Offset: -19
note: Minor Trimming
Stance: 2
size: 295/60R20
wheel: 20x10
Bolt Pattern: 6x135
Wheel Offset: -24
note: Minor Trimming
Stance: 2
size: 295/60R20
wheel: 20x10
Bolt Pattern: 6x135
Wheel Offset: -25
note: Minor Trimming
Stance: 2
size: 305/55R20
wheel: 20x10
Bolt Pattern: 6x135
Wheel Offset: -18
note: Minor Trimming
Stance: 2
size: 305/55R20
wheel: 20x10
Bolt Pattern: 6x135
Wheel Offset: -19
note: Minor Trimming
Stance: 2
size: 305/55R20
wheel: 20x10
Bolt Pattern: 6x135
Wheel Offset: -24
note: Minor Trimming
Stance: 2
size: 305/55R20
wheel: 20x10
Bolt Pattern: 6x135
Wheel Offset: -25
note: Minor Trimming
Stance: 2
size: 33x12.50R20
wheel: 20x10
Bolt Pattern: 6x135
Wheel Offset: -18
note: Minor Trimming
Stance: 2
size: 33x12.50R20
wheel: 20x10
Bolt Pattern: 6x135
Wheel Offset: -19
note: Minor Trimming
Stance: 2
size: 33x12.50R20
wheel: 20x10
Bolt Pattern: 6x135
Wheel Offset: -24
note: Minor Trimming
Stance: 2
size: 33x12.50R20
wheel: 20x10
Bolt Pattern: 6x135
Wheel Offset: -25
note: Minor Trimming
Stance: 2
size: 305/55R20
wheel: 20x12
Bolt Pattern: 6x135
Wheel Offset: -44
note: Trimming Required
Stance: 2
size: 33x12.50R20
wheel: 20x12
Bolt Pattern: 6x135
Wheel Offset: -44
note: Trimming Required
Stance: 2
size: 265/60R20
wheel: 20x9
Bolt Pattern: 6x135
Wheel Offset: -12
note: -
Stance: 1
size: 295/60R20
wheel: 20x9
Bolt Pattern: 6x135
Wheel Offset: +0
note: Minor Trimming
Stance: 1
size: 295/60R20
wheel: 20x9
Bolt Pattern: 6x135
Wheel Offset: +1
note: Minor Trimming
Stance: 1
size: 295/60R20
wheel: 20x9
Bolt Pattern: 6x135
Wheel Offset: +18
note: -
Stance: 1
size: 295/60R20
wheel: 20x9
Bolt Pattern: 6x135
Wheel Offset: +20
note: -
Stance: 1
size: 295/60R20
wheel: 20x9
Bolt Pattern: 6x135
Wheel Offset: -12
note: Minor Trimming
Stance: 1
size: 305/55R20
wheel: 20x9
Bolt Pattern: 6x135
Wheel Offset: +0
note: -
Stance: 1
size: 305/55R20
wheel: 20x9
Bolt Pattern: 6x135
Wheel Offset: +1
note: -
Stance: 1
size: 305/55R20
wheel: 20x9
Bolt Pattern: 6x135
Wheel Offset: +18
note: -
Stance: 1
size: 305/55R20
wheel: 20x9
Bolt Pattern: 6x135
Wheel Offset: +20
note: -
Stance: 1
size: 305/55R20
wheel: 20x9
Bolt Pattern: 6x135
Wheel Offset: -12
note: -
Stance: 1
size: 33x12.50R20
wheel: 20x9
Bolt Pattern: 6x135
Wheel Offset: +0
note: -
Stance: 1
size: 33x12.50R20
wheel: 20x9
Bolt Pattern: 6x135
Wheel Offset: +1
note: -
Stance: 1
size: 33x12.50R20
wheel: 20x9
Bolt Pattern: 6x135
Wheel Offset: +18
note: -
Stance: 1
size: 33x12.50R20
wheel: 20x9
Bolt Pattern: 6x135
Wheel Offset: +20
note: -
Stance: 1
size: 33x12.50R20
wheel: 20x9
Bolt Pattern: 6x135
Wheel Offset: -12
note: -
Stance: 1
size: 305/45R22
wheel: 22x10
Bolt Pattern: 6x135
Wheel Offset: -18
note: -
Stance: 2
size: 305/45R22
wheel: 22x10
Bolt Pattern: 6x135
Wheel Offset: -19
note: -
Stance: 2
size: 33x12.50R22
wheel: 22x10
Bolt Pattern: 6x135
Wheel Offset: -18
note: Minor Trimming
Stance: 2
size: 33x12.50R22
wheel: 22x10
Bolt Pattern: 6x135
Wheel Offset: -19
note: Minor Trimming
Stance: 2
size: 33x12.50R22
wheel: 22x10
Bolt Pattern: 6x135
Wheel Offset: -24
note: Minor Trimming
Stance: 2
size: 33x12.50R22
wheel: 22x10
Bolt Pattern: 6x135
Wheel Offset: -25
note: Minor Trimming
Stance: 2
size: 305/45R22
wheel: 22x12
Bolt Pattern: 6x135
Wheel Offset: -44
note: -
Stance: 2
size: 33x12.50R22
wheel: 22x12
Bolt Pattern: 6x135
Wheel Offset: -44
note: Trimming Required
Stance: 2
Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
Select Matching Wheels and Tires
FREE Mount, Balance, and Shipping!
About this Product
3 Inch Lift Kit | Ford F-150 4WD (2014-2020)
