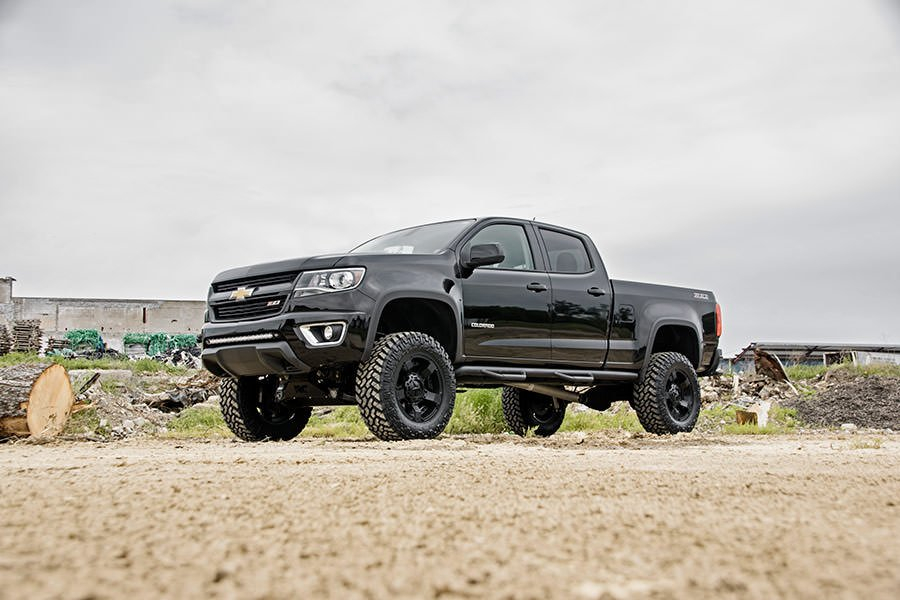

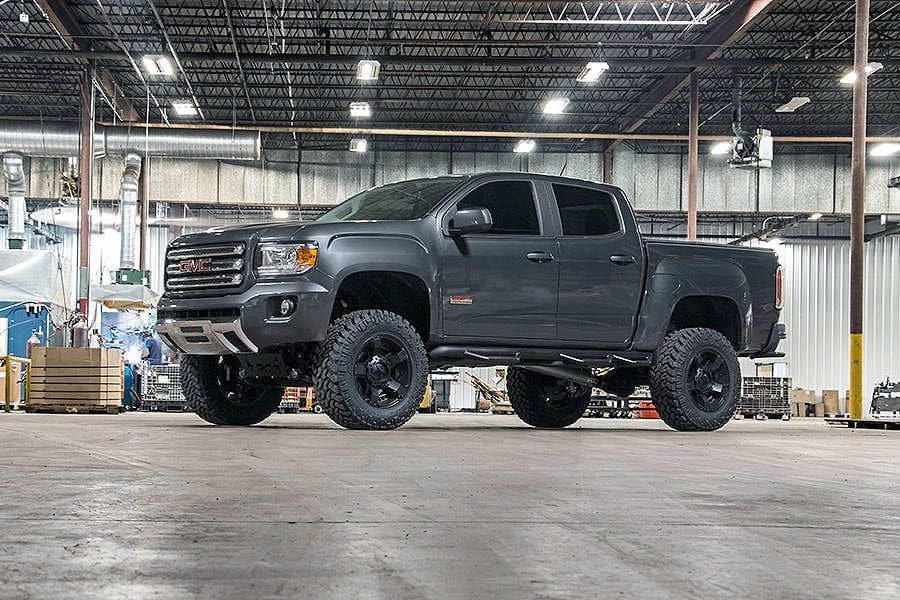

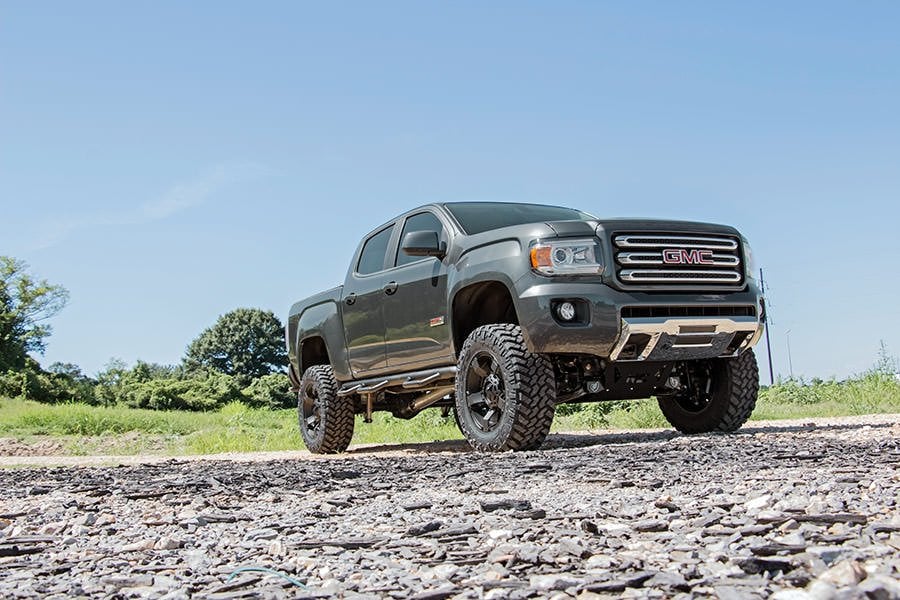

4 Inch Lift Kit Chevy/GMC Canyon/Colorado (15-22)
Features
- Increased ground clearance
- Maintains factory track width.
- Maintains factory-like ride.
- No welding or strut disassembly required to install.
- No tie-rod cutting or replacing required.
- Front skid plate features a laser cut "RC" logo.
- Lifted knuckles are designed to keep as close to OE geometry as possible.
Fitment Notes
- Fits both Gas and Diesel models.
- Does NOT fit Trail Boss/ZR2 models.
- Does NOT fit models equipped with Multimatic DSSV suspension. (AT4X)
- Requires minor cutting and drilling.
- Requires aftermarket 18" wheels - Factory wheels will NOT work.
- Highly recommended that aftermarket wheels, and / or wheel spacers, be hub-centric.
Shock Configuration Options
Premium N3
included10-Stage Variable Valving
High Pressure Nitrogen Charged
35mm Piston
Chromed Hardened 18mm Piston Rod
54mm Shock Body to dissipate heat faster
36kN Tensile Strength
Spring Loaded Piston Rod Seal
Military Spec. Fluid Rated To –40° C
Rubber bushings for better absorption
Metallic Silver Paint
3-year Manufacturer's Warranty
V2 Monotube
includedIncredible ride quality & performance
Monotube design
Internal floating piston
Nitrogen-charged
46mm high-flow piston
Fast heat dissipation
36kN Tensile Strength
Mounts inverted
T6061 brushed aluminum body
3-year Manufacturer's Warranty
Installation
GET IT INSTALLED
Don’t want to install it yourself? Search for installers in your area.
FITMENT
Vehicles
Always read all product page details for more important fitment information
Wheels & Tires
Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
