6 Inch Lift Kit Ford Super Duty 4WD (2017-2022)
Add vehicle to check this part fits
Fitment NotesSTARTING PRICE
$1,799.95
STARTING PRICE
$1,799.95
Select Matching Wheels and Tires
FREE Mount, Balance, and Shipping!
Features
Gain greater travel and improved handling while adding ground clearance and aggressive style with Rough Country’s 4-Link F-250 Lift Kit.
This innovative kit allows you to replace your factory arms with a 4-Link setup, using Rough Country’s durable, fixed upper arms and adjustable lower control arms. A set of radius arm drop brackets maintain proper geometry and allow for proper caster setting, which is crucial to maintain factory handling.
This kit includes a set of lifted coil springs, radius arm drop-brackets, and ultra-durable, fabricated Anti-wrap rear blocks that prevent binding and axle wrap. This kit also includes stainless steel extended brake lines and brake line brackets to ensure you have everything you need to install your lift. Best of all, this kit features Rough Country’s Nitrogen-Charged N2.0 Shock Absorbers for the ultimate balance in off-road performance and a smooth highway ride. Includes Rough Country’s Lifetime Replacement Warranty
This innovative kit allows you to replace your factory arms with a 4-Link setup, using Rough Country’s durable, fixed upper arms and adjustable lower control arms. A set of radius arm drop brackets maintain proper geometry and allow for proper caster setting, which is crucial to maintain factory handling.
This kit includes a set of lifted coil springs, radius arm drop-brackets, and ultra-durable, fabricated Anti-wrap rear blocks that prevent binding and axle wrap. This kit also includes stainless steel extended brake lines and brake line brackets to ensure you have everything you need to install your lift. Best of all, this kit features Rough Country’s Nitrogen-Charged N2.0 Shock Absorbers for the ultimate balance in off-road performance and a smooth highway ride. Includes Rough Country’s Lifetime Replacement Warranty
- Easy bolt-on installation
- Increased ground clearance
- Levels the front with the rear of the vehicle
- Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
- Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.
- 10-Stage Variable Valving
- High Pressure Nitrogen Charged
- 35mm Piston
- Chromed Hardened 18mm Piston Rod
- 36kN Tensile Strength
- Spring Loaded Piston Rod Seal
- Metallic Silver Paint
- Silver powder coat finish
- 3-year Manufacturer's Warranty
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty
- 8-Stage Adjustable Damping
- Monotube Design
- Nitrogen-charged
- Massive 2.5in Piston
- 22mm Chrome-Hardened Piston Rod
- 3-Stage Seal System
- Heat-Treated, Alloy Bearing
- Honed Steel Body
- 3-year Manufacturer's Warranty
Optional Premium N3 Shocks
Optional V2 Monotube Shocks
Optional Vertex Shocks
Fitment Notes
- Models equipped with a 10-speed transmission must remove dial pin.
- Does NOT fit gas engine models.
- Does NOT fit manual shift transfer cases
- Does NOT fit dually models.
- New fabricated lift block replaces the factory equipped lift block.
- Does NOT work on models equipped with Tremor Factory Trim Package
Installation
Specifications
Est. Install Time:
6-10 hours

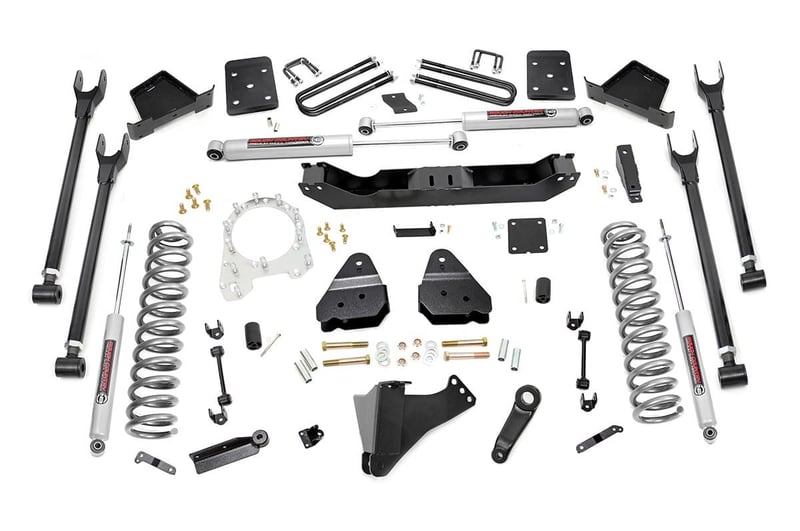

In The Box
Front:
- Lifted coil springs
- Fixed upper control arms
- Clocking ring kit
- Adjustable lower control arms
- Radius arm drop brackets
- Sway-bar drop brackets
- Track bar drop bracket
- Stabilizer relocation brackets
- Pitman arm
- Brake line brackets
- Bumpstop spacers
- Hardware
Rear:
- Fabricated anti-wrap lift blocks
- Carrier bearing drop bracket
- Brake line brackets
- U-bolts
- Hardware
Shocks:
- (4) Premium N3 series
GET IT INSTALLED
Don’t want to install it yourself? Search for installers in your area.
FITMENT
Vehicles
2017 - 2022
Ford
F-350 Super Duty
4WD
2017 - 2022
Ford
F-250 Super Duty
4WD
Always read all product page details for more important fitment information
Wheels & Tires
37x12.50R18
Popular
18x9
8x170
+0
-
1
37x12.50R20
Popular
20x9
8x170
-12
-
1
35x12.50R17
17x9
8x170
-12
-
1
37x12.50R17
17x9
8x170
+0
-
1
37x12.50R17
17x9
8x170
+1
-
1
37x12.50R17
17x9
8x170
-12
-
1
35x12.50R18
18x9
8x170
+0
-
1
35x12.50R18
18x9
8x170
+1
-
1
35x12.50R18
18x9
8x170
-12
-
1
37x12.50R18
18x9
8x170
+1
-
1
37x12.50R18
18x9
8x170
-12
-
1
35x12.50R20
20x10
8x170
-18
Minor Trimming
1
35x12.50R20
20x10
8x170
-19
Minor Trimming
1
37x12.50R20
20x10
8x170
-18
Minor Trimming
1
37x12.50R20
20x10
8x170
-19
Minor Trimming
1
37x12.50R20
20x10
8x170
-25
Minor Trimming
2
35x12.50R20
20x12
8x170
-44
Trimming Required
2
37x12.50R20
20x12
8x170
-44
Trimming Required
2
295/65R20
20x9
8x170
-12
-
1
35x11.50R20
20x9
8x170
-12
-
1
35x12.50R20
20x9
8x170
-12
-
1
37x12.50R20
20x9
8x170
+0
-
1
37x12.50R20
20x9
8x170
+1
-
1
35x12.50R22
22x10
8x170
-18
Minor Trimming
1
35x12.50R22
22x10
8x170
-19
Minor Trimming
1
37x12.50R22
22x10
8x170
-18
Minor Trimming
1
37x12.50R22
22x10
8x170
-19
Minor Trimming
1
37x12.50R22
22x10
8x170
-25
Minor Trimming
2
35x12.50R22
22x12
8x170
-44
Trimming Required
2
Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
