4 Inch Lift Kit Jeep Wrangler TJ 4WD (1997-2006)
STARTING PRICE
$1,399.95
STARTING PRICE
$1,399.95
Select Matching Wheels and Tires
FREE Mount, Balance, and Shipping!
Features

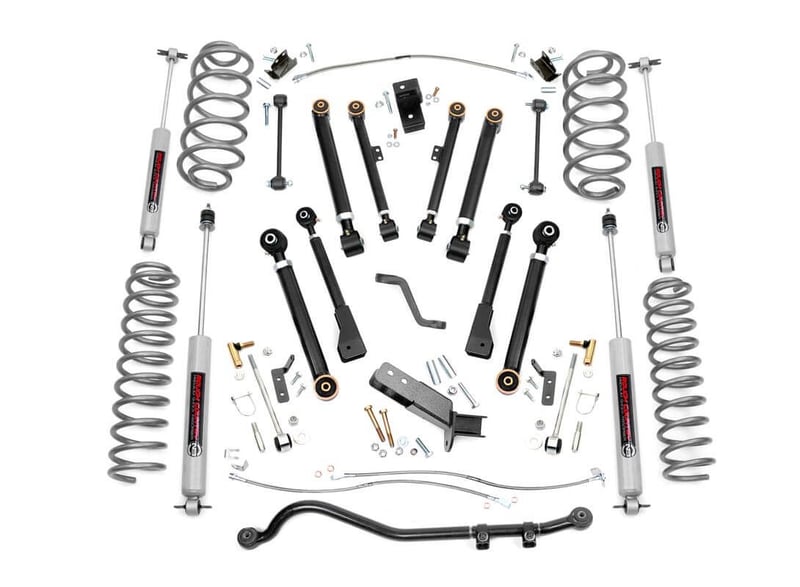

Venture far beyond the limits of a stock Wrangler with Rough Country's all-inclusive 4-inch X-Series Lift for Jeep TJ. Level the front of your vehicle with the rear while gaining enough increased ground clearance to run up to 33-inch tires.
- Easy bolt-on installation
- Increased ground clearance
- Levels the front with the rear of the vehicle
- Front adjustable track bar is made of forged solid steel for unsurpassed strength and durability
- Coil springs are progressive rate for enhanced ride quality.
- Quick disconnects quickly and easily store out of the way when not in use.
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
- X-Flex control arm features:
- durable OEM style rubber bushings.
- Flex joints feature a massive 2.5" diameter body and 1.25" thread.
- Fully greasable.
- Upper joints pivot up to 20 degrees.
- Lower joints pivot up to 35 degrees.
Fitment Notes
- Transfer case drop kit or Slip Yoke Eliminator with CV Drive Shaft is recommended to avoid driveline vibration. View CV Drive Shafts here.
- Rubicon models do not need a SYE kit or transfer case drop but a CV Drive Shaft is still recommended.
Shock Configuration Options
Premium N3
included10-Stage Variable Valving
High Pressure Nitrogen Charged
35mm Piston
Chromed Hardened 18mm Piston Rod
54mm Shock Body to dissipate heat faster
36kN Tensile Strength
Spring Loaded Piston Rod Seal
Military Spec. Fluid Rated To –40° C
Rubber bushings for better absorption
Metallic Silver Paint
3-year Manufacturer's Warranty
M1 Monotube
+$140.002-inch seamless extruded tube.
46mm digressive piston.
Self-adjusting, deflective-disc independent rebound and compression.
18mm centerless-ground, case-hardened, chromed, and super-polished rod.
46mm monotube design ensures consistent, fade-free performance in all conditions.
Digressive valving instantly reacts to changing surface conditions.
Zinc plated for resistance against harsh elements.
Available in various lift heights for multiple applications.
Durable vulcanized natural rubber bushings.
3-year Manufacturer's Warranty
V2 Monotube
+$320.00Incredible ride quality & performance
Monotube design
Internal floating piston
Nitrogen-charged
46mm high-flow piston
Fast heat dissipation
36kN Tensile Strength
Mounts inverted
T6061 brushed aluminum body
3-year Manufacturer's Warranty
Installation
GET IT INSTALLED
Don’t want to install it yourself? Search for installers in your area.
FITMENT
Vehicles
year: 2005 - 2006
make: Jeep
model: Wrangler Unlimited Rubicon
drive: 4WD
year: 2004 - 2006
make: Jeep
model: Wrangler Unlimited
drive: 4WD
year: 2003 - 2006
make: Jeep
model: Wrangler Rubicon
drive: 4WD
year: 1997 - 2006
make: Jeep
model: Wrangler
drive: 4WD
Always read all product page details for more important fitment information
Wheels & Tires
size: 33x12.50R15
wheel: 15x10
Bolt Pattern: 5x4.5
Wheel Offset: -39
note: Trimming Required
Stance: 2
size: 33x12.50R15
wheel: 15x8
Bolt Pattern: 5x4.5
Wheel Offset: -18
note: -
Stance: 1
size: 33x12.50R15
wheel: 15x8
Bolt Pattern: 5x4.5
Wheel Offset: -19
note: -
Stance: 1
size: 285/75R16
wheel: 16x8
Bolt Pattern: 5x4.5
Wheel Offset: -6
note: -
Stance: 1
size: 305/70R16
wheel: 16x8
Bolt Pattern: 5x4.5
Wheel Offset: -6
note: -
Stance: 1
size: 33x12.50R16
wheel: 16x8
Bolt Pattern: 5x4.5
Wheel Offset: -6
note: -
Stance: 1
size: 285/70R17
wheel: 17x8.5
Bolt Pattern: 5x4.5
Wheel Offset: +0
note: -
Stance: 1
size: 285/70R17
wheel: 17x8.5
Bolt Pattern: 5x4.5
Wheel Offset: +1
note: -
Stance: 1
size: 295/70R17
wheel: 17x8.5
Bolt Pattern: 5x4.5
Wheel Offset: +0
note: -
Stance: 1
size: 295/70R17
wheel: 17x8.5
Bolt Pattern: 5x4.5
Wheel Offset: +1
note: -
Stance: 1
size: 295/70R17
wheel: 17x8.5
Bolt Pattern: 5x4.5
Wheel Offset: -12
note: -
Stance: 1
size: 285/70R17
wheel: 17x9
Bolt Pattern: 5x4.5
Wheel Offset: +0
note: -
Stance: 1
size: 285/70R17
wheel: 17x9
Bolt Pattern: 5x4.5
Wheel Offset: +1
note: -
Stance: 1
size: 285/70R17
wheel: 17x9
Bolt Pattern: 5x4.5
Wheel Offset: -12
note: -
Stance: 1
size: 285/75R17
wheel: 17x9
Bolt Pattern: 5x4.5
Wheel Offset: +0
note: -
Stance: 1
size: 285/75R17
wheel: 17x9
Bolt Pattern: 5x4.5
Wheel Offset: +1
note: -
Stance: 1
size: 295/70R17
wheel: 17x9
Bolt Pattern: 5x4.5
Wheel Offset: +0
note: -
Stance: 1
size: 295/70R17
wheel: 17x9
Bolt Pattern: 5x4.5
Wheel Offset: +1
note: -
Stance: 1
size: 295/70R17
wheel: 17x9
Bolt Pattern: 5x4.5
Wheel Offset: -12
note: -
Stance: 1
size: 305/70R17
wheel: 17x9
Bolt Pattern: 5x4.5
Wheel Offset: +0
note: -
Stance: 1
size: 305/70R17
wheel: 17x9
Bolt Pattern: 5x4.5
Wheel Offset: +1
note: -
Stance: 1
size: 305/70R17
wheel: 17x9
Bolt Pattern: 5x4.5
Wheel Offset: -12
note: -
Stance: 1
size: 33x12.50R17
wheel: 17x9
Bolt Pattern: 5x4.5
Wheel Offset: +0
note: -
Stance: 1
size: 33x12.50R17
wheel: 17x9
Bolt Pattern: 5x4.5
Wheel Offset: +1
note: -
Stance: 1
size: 33x12.50R17
wheel: 17x9
Bolt Pattern: 5x4.5
Wheel Offset: -12
note: -
Stance: 1
size: 285/65R18
wheel: 18x8.5
Bolt Pattern: 5x4.5
Wheel Offset: +0
note: -
Stance: 1
size: 285/65R18
wheel: 18x8.5
Bolt Pattern: 5x4.5
Wheel Offset: +1
note: -
Stance: 1
size: 305/60R18
wheel: 18x8.5
Bolt Pattern: 5x4.5
Wheel Offset: +0
note: -
Stance: 1
size: 305/60R18
wheel: 18x8.5
Bolt Pattern: 5x4.5
Wheel Offset: +1
note: -
Stance: 1
size: 33x12.50R18
wheel: 18x8.5
Bolt Pattern: 5x4.5
Wheel Offset: +0
note: -
Stance: 1
size: 33x12.50R18
wheel: 18x8.5
Bolt Pattern: 5x4.5
Wheel Offset: +1
note: -
Stance: 1
size: 285/65R18
wheel: 18x9
Bolt Pattern: 5x4.5
Wheel Offset: +0
note: -
Stance: 1
size: 285/65R18
wheel: 18x9
Bolt Pattern: 5x4.5
Wheel Offset: +1
note: -
Stance: 1
size: 305/60R18
wheel: 18x9
Bolt Pattern: 5x4.5
Wheel Offset: +0
note: -
Stance: 1
size: 305/60R18
wheel: 18x9
Bolt Pattern: 5x4.5
Wheel Offset: +1
note: -
Stance: 1
size: 33x12.50R18
wheel: 18x9
Bolt Pattern: 5x4.5
Wheel Offset: +0
note: -
Stance: 1
size: 33x12.50R18
wheel: 18x9
Bolt Pattern: 5x4.5
Wheel Offset: +1
note: -
Stance: 1
size: 285/55R20
wheel: 20x10
Bolt Pattern: 5x4.5
Wheel Offset: -18
note: Minor Trimming
Stance: 2
size: 285/55R20
wheel: 20x10
Bolt Pattern: 5x4.5
Wheel Offset: -19
note: Minor Trimming
Stance: 2
size: 305/55R20
wheel: 20x10
Bolt Pattern: 5x4.5
Wheel Offset: -18
note: Minor Trimming
Stance: 2
size: 305/55R20
wheel: 20x10
Bolt Pattern: 5x4.5
Wheel Offset: -19
note: Minor Trimming
Stance: 2
size: 33x12.50R20
wheel: 20x10
Bolt Pattern: 5x4.5
Wheel Offset: -18
note: Minor Trimming
Stance: 2
size: 33x12.50R20
wheel: 20x10
Bolt Pattern: 5x4.5
Wheel Offset: -19
note: Minor Trimming
Stance: 2
size: 285/55R20
wheel: 20x9
Bolt Pattern: 5x4.5
Wheel Offset: -12
note: -
Stance: 1
size: 305/55R20
wheel: 20x9
Bolt Pattern: 5x4.5
Wheel Offset: -12
note: -
Stance: 1
size: 33x12.50R20
wheel: 20x9
Bolt Pattern: 5x4.5
Wheel Offset: -12
note: -
Stance: 1
Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
