4.5 Inch Lift Kit Ford Raptor 4WD (2017-2018)

Add vehicle to check this part fits
Fitment Notes
Low Stock • Ships FREE
FREE SHIPPING
$1,299.95

Lowest Price Guarantee

Product Image 0
Product Image 1
Product Image 2
Product Image 3
Product Image 4

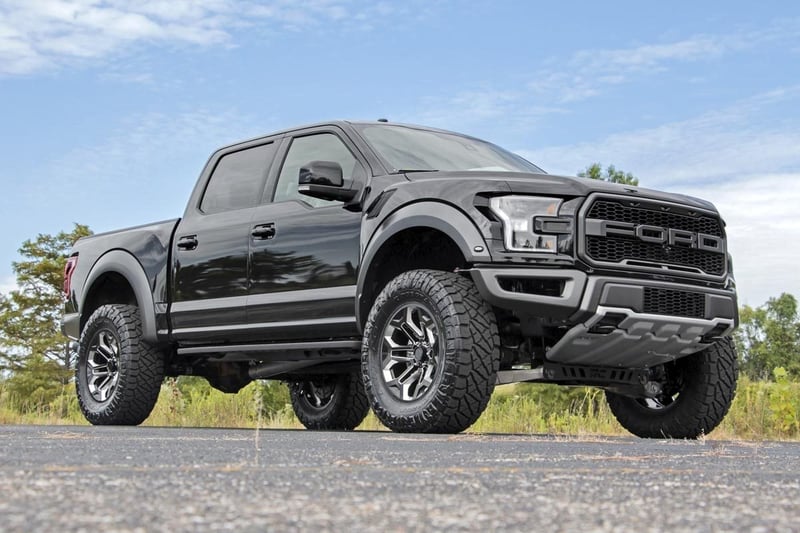

Product Image 5
Product Image 6
Product Image 7
Select Matching Wheels and Tires
Select Matching Wheels and Tires
FREE Mount, Balance, and Shipping!

Features

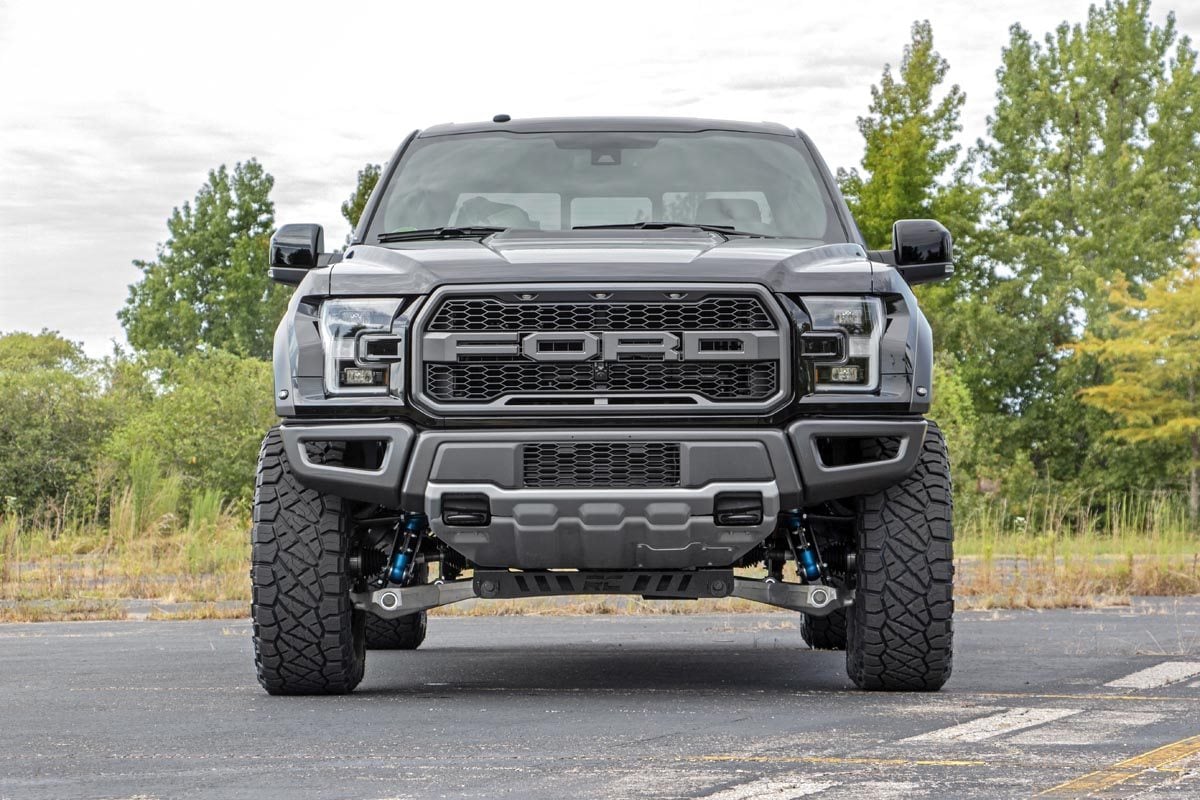

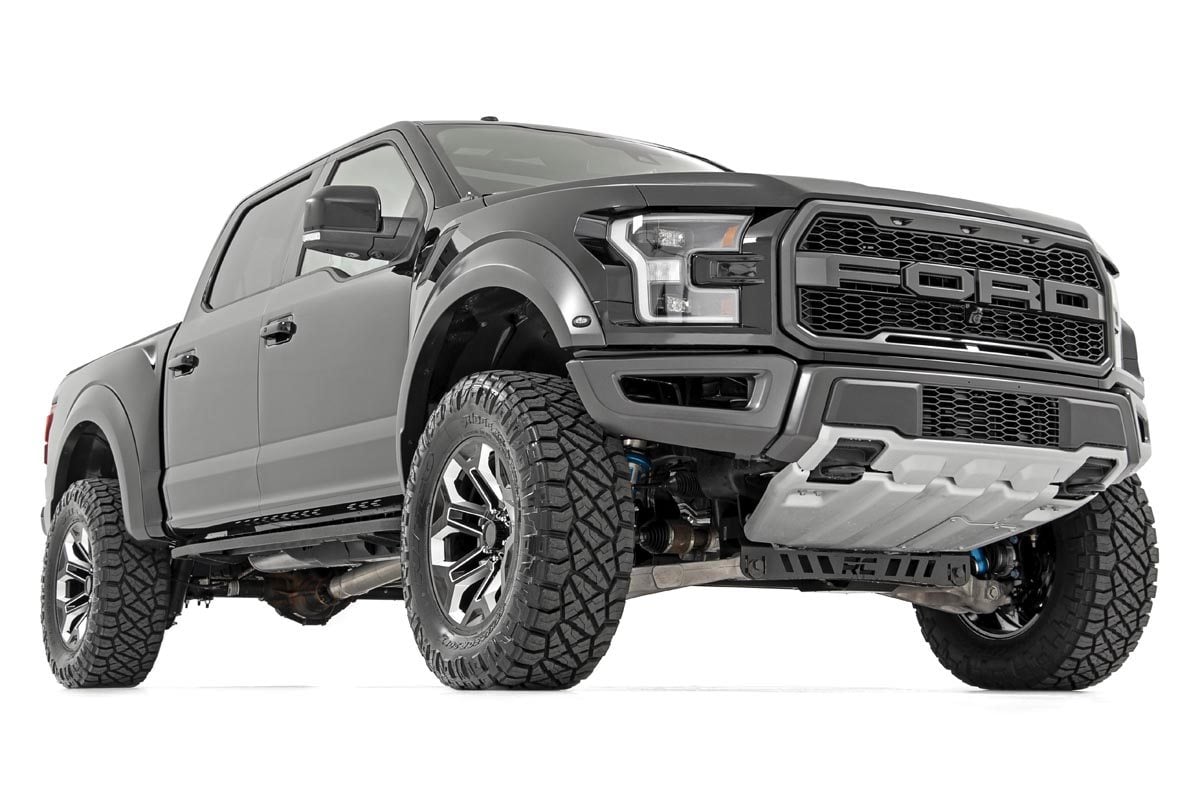

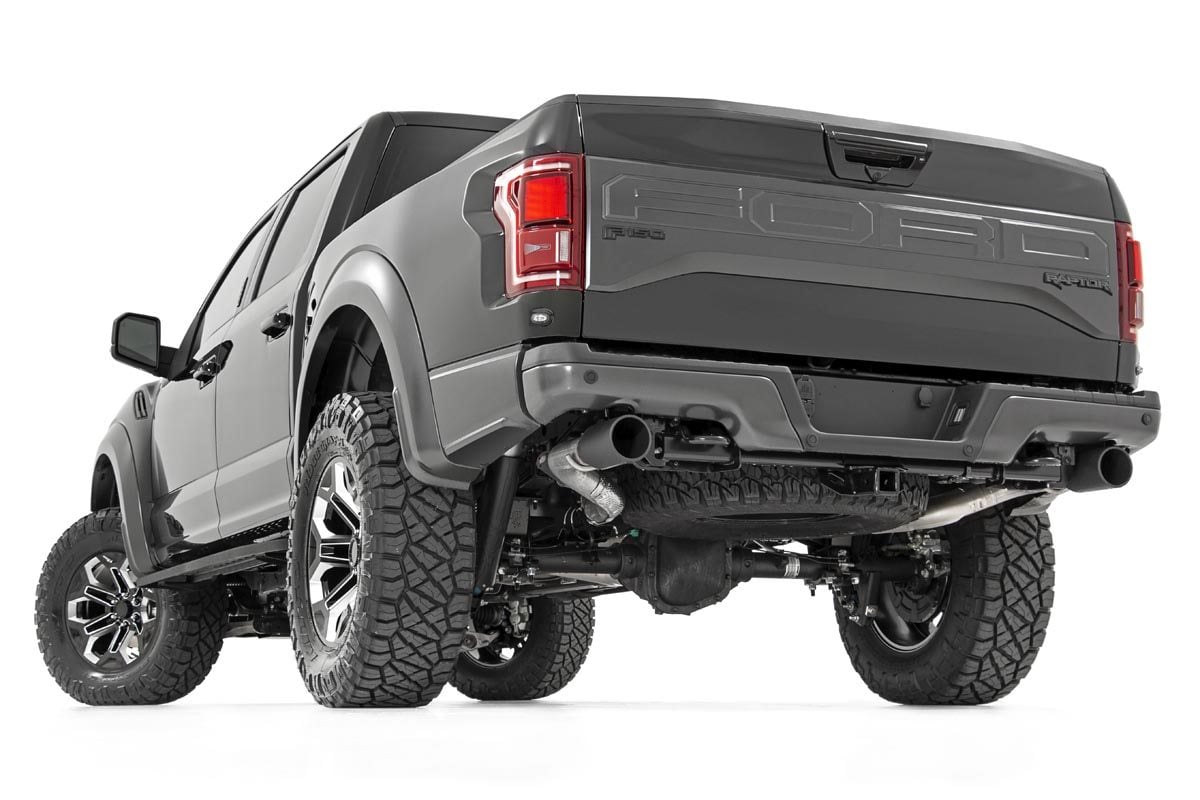

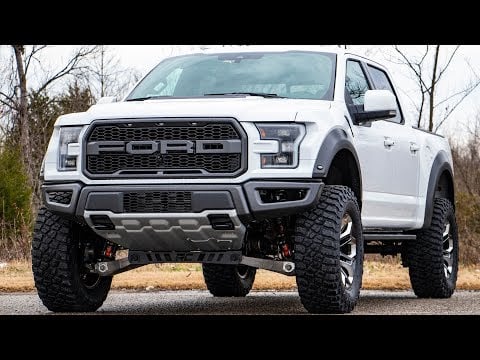

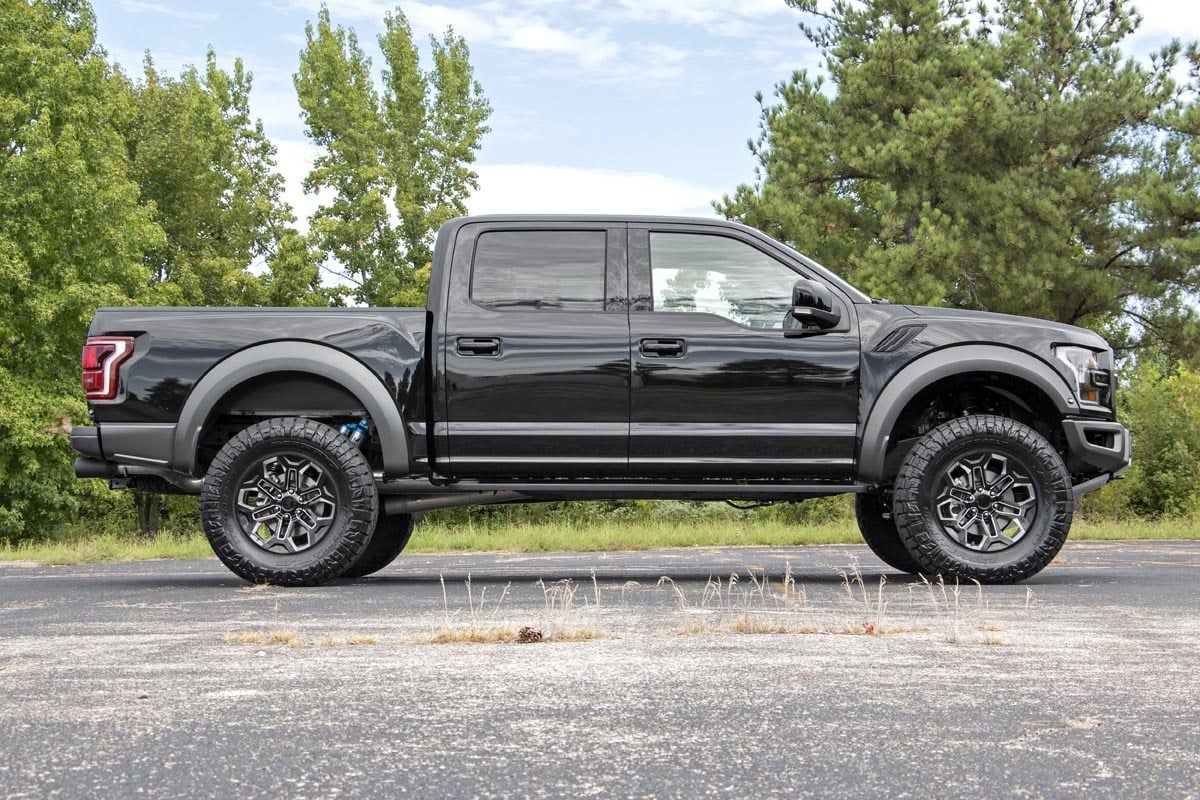

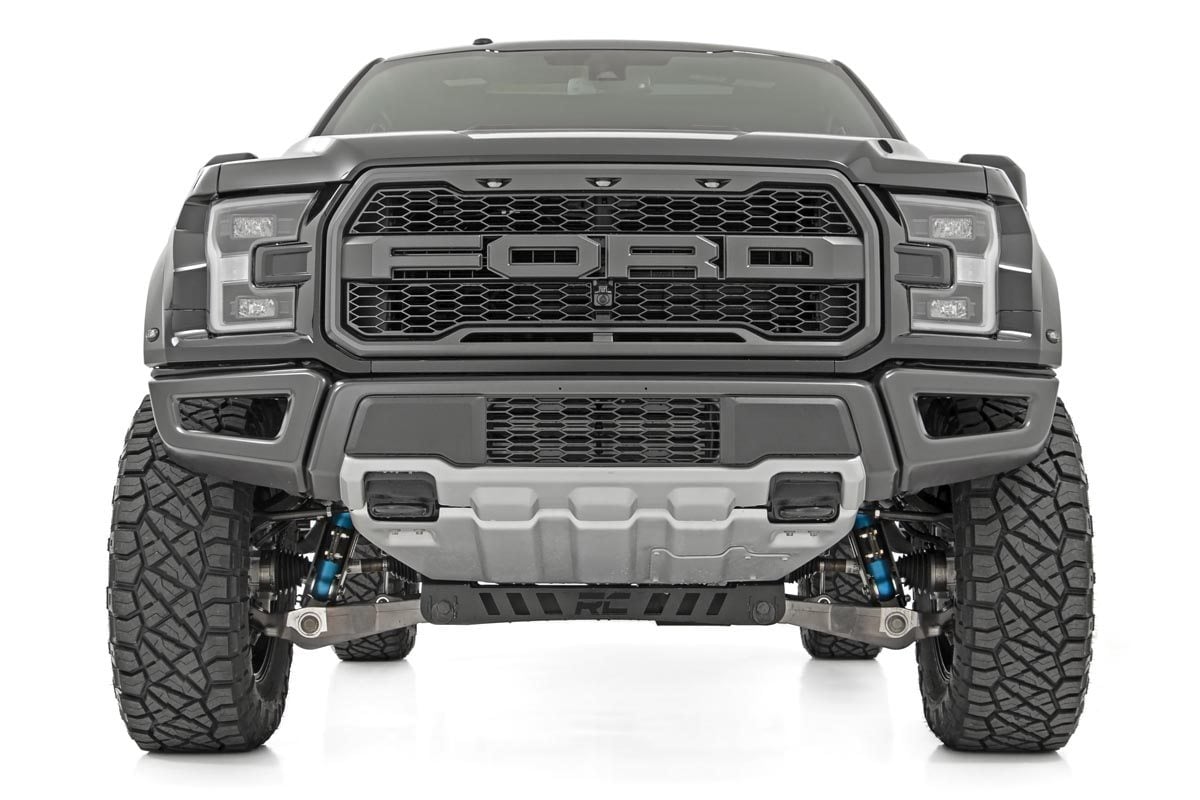

Transform your F-150 Raptor into the ultimate BEAST with Rough Country’s 4.5in Lift Kit. This innovative kit is designed to retain key components of the factory suspension so that you get the stance and lift height you want while maintaining the balance of smooth highway ride quality and off-road performance that Ford built into this impressive platform.

Give your F-150 Raptor enough ground clearance to run up to 37x12.50 tires for an aggressive, lifted stance that compliments the rugged, monster design of the Raptor build. This all-inclusive kit features a set of front and rear crossmembers, lifted knuckles and a set of anti-wrap, fabricated rear blocks with built-in bumpstops!

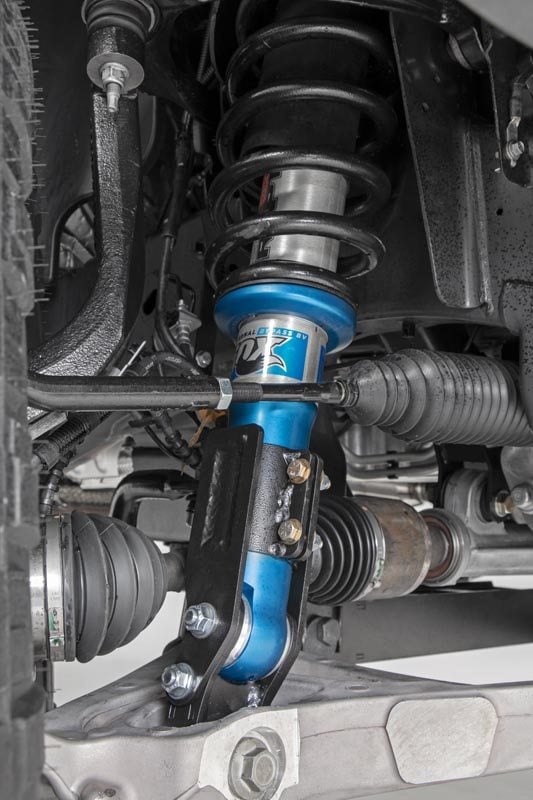

Rough Country’s 4.5in F-150 Raptor kit is designed to preserve factory like performance and handling. This kit utilizes a strut spacer assembly, which provides lift while retaining the factory strut. A rear shock extension assembly preserves the factory upgraded shock absorbers, allowing you to get the full effect of the specially-designed OEM components. This kit also preserves the factory track width, keeping everything nice and tucked-in for a larger-than-life look! Includes a Lifetime Replacement Guarantee!
  • Retains factory shocks and struts for incredible ride quality
  • Increased ground clearance
  • Retains factory track width
  • Levels the front of the vehicle with the rear
  • Includes fabricated, anti-wrap rear blocks w/ built-in bump stops
  • maintain stock ride quality while eliminating common lift block problem
Fitment Notes
  • Does NOT fit Single Cab Models
  • Requires cutting and drilling
  • Factory Wheels cannot be used
  • Aftermarket wheels must be 18in or larger
  • Aftermarket wheels must NOT exceed 9in width / 0mm offset / 5in backspacing
  • Due to manufacturing, dimension variances, and inflation, all tire and wheel combinations should be tested prior to installation

Est. Install Time 5-6 hours

Customer Support Headshot
Need Help?
Talk to a Build Expert

Installation

View Instruction Sheet
Est. Install Time:
5-6 hours

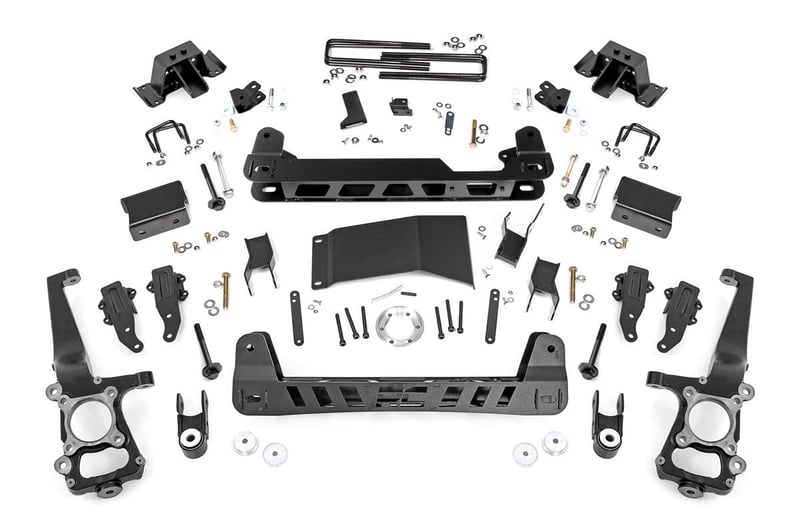

Front:
  • Lifted knuckles
  • Strut spacer assembly
  • Front crossmember
  • Rear crossmember
  • Sway-bar drop brackets
  • Differential drop brackets
  • Brake line brackets
  • Driveshaft spacer
  • Hardware
Rear:
  • Fabricated anti-wrap lift blocks
  • Brake line relocation brackets
  • Rear Factory Shock Spacer
  • U-bolts
  • Hardware

GET IT INSTALLED

Don’t want to install it yourself? Search for installers in your area.


FITMENT

Vehicles
year
make
model
drive
2017 - 2018
Ford
F-150 Raptor
4WD

Always read all product page details for more important fitment information

Wheels & Tires
Filters:
Most Popular
size
wheel
Bolt Pattern
Wheel Offset
note
Stance
37x12.50R20
Popular
20x9
6x135
+0
-
1
35x12.50R20
20x10
6x135
-18
Minor Trimming
2
35x12.50R20
20x10
6x135
-19
Minor Trimming
2
37x12.50R20
20x10
6x135
-18
Minor Trimming
2
37x12.50R20
20x10
6x135
-19
Minor Trimming
2
35x12.50R20
20x9
6x135
+0
-
1
35x12.50R20
20x9
6x135
+1
-
1
37x12.50R20
20x9
6x135
+1
-
1
35x12.50R22
22x10
6x135
-18
Minor Trimming
2
35x12.50R22
22x10
6x135
-19
Minor Trimming
2

Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
